Takei 2025 cerebellum — ChromData walkthrough + paper reproductions¶
A single notebook that walks through everything stored in the
takei2025_cerebellum_rep1.h5cd produced by the U-Chrom loader, then
reproduces five panels from the Takei et al. 2025 Nature paper
“Spatial multi-omics reveals cell-type-specific nuclear compartments”
(doi:10.1038/s41586-025-08838-x,
Zenodo record 7693825).
Parts
Load data — use the Takei 2025 convenience loader, which reuses or builds linked
.h5cd/.h5adartifacts.ChromData field-by-field inspection —
coords,spots,tracks,cells,cellm,traces,uns.Subsetting & distance API demo.
Paper reproductions (5 figures, all inline):
UMAP painted by cell type
Cell-type × marker median heatmap

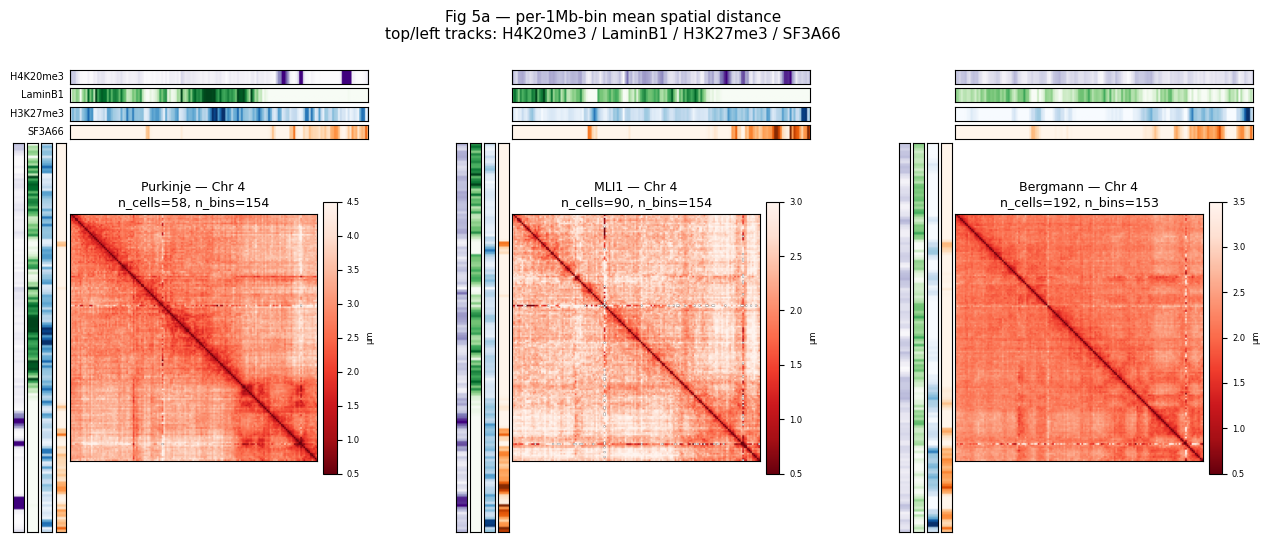

Fig 5a — per-1Mb-bin spatial distance heatmaps on chr4

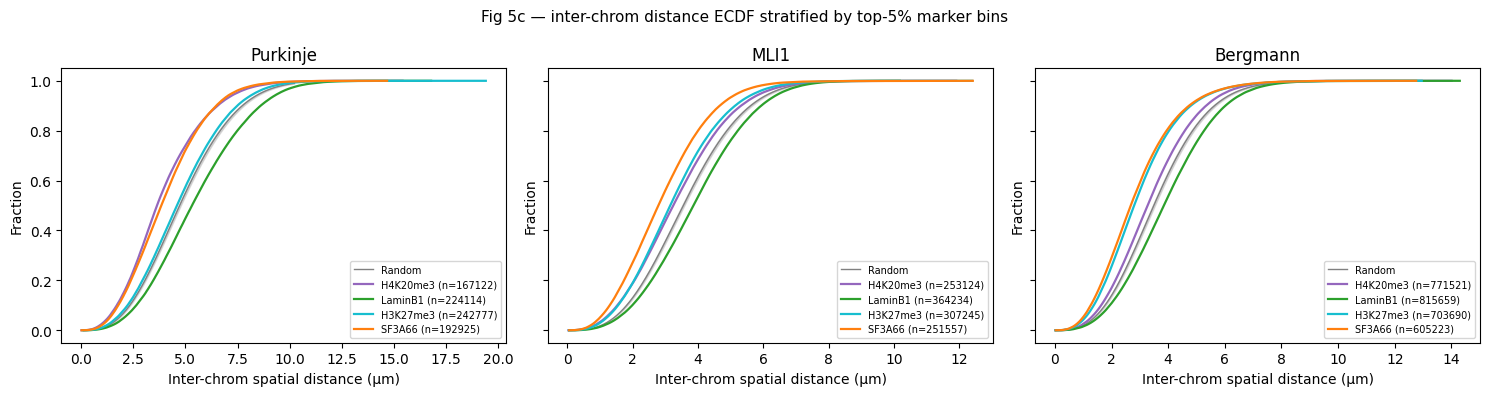

Fig 5c — inter-chromosomal distance ECDFs by top-5% marker bins

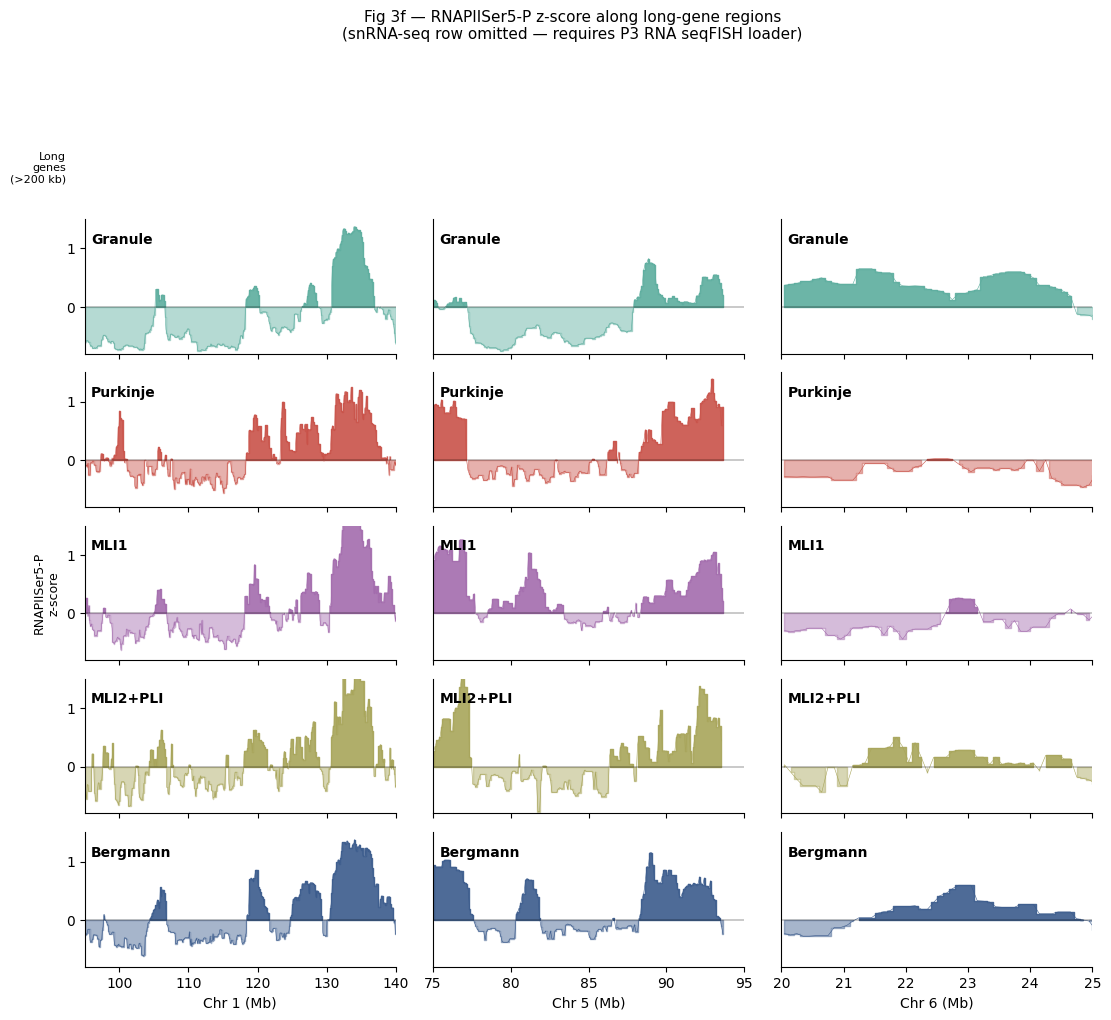

Fig 3f — RNAPIISer5-P z-score tracks along long-gene regions
Framework gap notes.
1. Load the data¶
Loads the linked Takei 2025 cerebellum dataset through the U-Chrom convenience loader. The loader returns a ChromData; the associated RNA expression matrix is available as cdata.linked_adata. If the paired .h5cd / .h5ad artifacts are missing, the loader downloads the required Zenodo/GitHub source files and builds them under example-data/takei2025_cerebellum/.
from pathlib import Path
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
from matplotlib.patches import Rectangle
from uchrom.io import load_takei2025_cerebellum
cdata = load_takei2025_cerebellum(
replicate=1,
data_dir='example-data/takei2025_cerebellum',
download=True,
)
adata = cdata.linked_adata
DATA_MODE = 'real'
print(cdata)
print(f'linked_adata: {None if adata is None else adata.shape}')
ChromData: n_spots=10912638, n_traces=59112, n_cells=1799
spots: ['chrom', 'start', 'end', 'trace_id', 'cell_id', 'name']
cells: ['leiden', 'cell_type', 'x_centroid', 'y_centroid', 'z_centroid', 'nuc_volume_um3', 'doublet', 'batch', 'n_transcripts', 'n_genes_by_counts'] (1799 cells)
cellm: {'umap': (1799, 2)}
tracks: ['CPSF6', 'ATRX', 'H4K8ac', 'HDAC2', 'H3K9ac', 'H3K9me3', 'H3K9me2', 'RNAPIISer2-P', 'H3', 'H3K36me2', 'UBTF', 'LaminB1', 'RNAPIISer5-P', 'RYBP', 'HP1beta', 'RING1B', 'H2A.X', 'H3K4me1', 'H4K20me2', 'H3K27me2', 'JARID2', 'SF3A66', 'CBP', 'H2AK119u1', 'EZH2', 'H3K4me2', 'BRG1', 'HP1alpha', 'Fibrillarin', 'KAP1', 'H3K27ac', 'H3K4me3', 'H3K36ac', 'H3K14ac', 'H4K20me1', 'HP1gamma', 'H4K20me3', 'H3K27me3', 'mH2A1', 'CHD4', 'KAT3B_p300', 'H3K56ac', 'H3K36me3', 'HDAC1', 'SUZ12', 'H4K16ac', 'BRD4', 'SOX2', 'rDNA', 'MajSat', 'LINE1', 'SINEB1', 'Telomere', 'MinSat', 'Xist_RNA', 'ITS1_RNA', 'Rnu2_RNA', 'polyA_RNA', 'Malat1_RNA', 'dot_int', 'n_rad_score', 'n_per_dist(um)']
traces: ['dbscan_allele', 'dbscan_ldp_allele'] (59112 traces)
uns: ['allele_col', 'genome_assembly', 'keep_unclustered', 'source', 'voxel_xy_nm', 'voxel_z_nm', 'xyz_unit', 'zenodo_record', 'leiden_to_cell_type', 'linked_anndata']
linked_adata: (1799, 60)
linked_adata: (1799, 60)
2. ChromData inspection¶
A ChromData aggregates one experiment’s structure data into named components. Each cell below shows one component and how to access it. Schema summary:
field |
type |
role |
|---|---|---|
|
|
μm coordinate per spot |
|
DataFrame |
chrom / start / end / trace_id / cell_id |
|
DataFrame |
per-spot signal (62 z-score / derived columns) |
|
DataFrame |
per-cell metadata, indexed by cell_id |
|
dict of ndarrays |
per-cell multi-dim arrays (e.g. UMAP) |
|
DataFrame |
per-trace metadata, indexed by trace_id |
|
dict |
global metadata |
2.1 coords — per-spot 3D positions¶
print(f'shape : {cdata.coords.shape}')
print(f'dtype : {cdata.coords.dtype}')
print(f'first 5 rows (μm):')
print(cdata.coords[:5])
shape : (10912638, 3)
dtype : float64
first 5 rows (μm):
[[131.758424 107.129991 1.606 ]
[132.623212 109.05331 1.62025 ]
[132.47963 107.992513 1.59625 ]
[135.733297 108.514723 1.584 ]
[133.746015 107.105786 1.6115 ]]
2.2 spots — per-spot identifiers¶
print(f'shape : {cdata.spots.shape}')
print('dtypes :')
print(cdata.spots.dtypes)
print('\nhead:')
print(cdata.spots.head())
print('\nchrom value counts (first 10):')
print(cdata.spots['chrom'].value_counts().head(10))
shape : (10912638, 6)
dtypes :
chrom category
start int64
end int64
trace_id category
cell_id category
name object
dtype: object
head:
chrom start end trace_id cell_id name
0 chr10 37950000 37975000 1_0_270_chr10_a1 1_0_270 chr10-1393
1 chr5 68900000 68925000 1_0_270_chr5_a1 1_0_270 chr5-2621
2 chr5 82425000 82450000 1_0_270_chr5_a1 1_0_270 chr5-3162
3 chrX 81925000 81950000 1_0_270_chrX_a1 1_0_270 chrX-3076
4 chr14 94925000 94950000 1_0_270_chr14_a1 1_0_270 chr14-3669
chrom value counts (first 10):
chrom
chr1 894280
chr2 838820
chr3 753858
chr4 698048
chr6 679287
chr10 633692
chr8 575384
chr7 552546
chr9 550073
chr5 544520
Name: count, dtype: int64
2.3 tracks — 62 per-spot epigenomic signals¶
59 z-score columns (IF + DNA-FISH repeats + RNA-FISH probes) plus dot_int / n_rad_score / n_per_dist(um). In rep2 the columns LINE1 and SINEB1 are NaN (those probes were not in rep2).
print(f'shape : {cdata.tracks.shape}')
print(f'\n62 columns:')
for i in range(0, len(cdata.tracks.columns), 8):
print(' ' + ', '.join(cdata.tracks.columns[i:i+8]))
print('\nhead (first 5 columns × 5 rows):')
print(cdata.tracks.iloc[:5, :5])
print('\nbasic stats on a few markers:')
print(cdata.tracks[['H3K27me3', 'LaminB1', 'RNAPIISer5-P', 'SF3A66']].describe().round(2))
shape : (10912638, 62)
62 columns:
CPSF6, ATRX, H4K8ac, HDAC2, H3K9ac, H3K9me3, H3K9me2, RNAPIISer2-P
H3, H3K36me2, UBTF, LaminB1, RNAPIISer5-P, RYBP, HP1beta, RING1B
H2A.X, H3K4me1, H4K20me2, H3K27me2, JARID2, SF3A66, CBP, H2AK119u1
EZH2, H3K4me2, BRG1, HP1alpha, Fibrillarin, KAP1, H3K27ac, H3K4me3
H3K36ac, H3K14ac, H4K20me1, HP1gamma, H4K20me3, H3K27me3, mH2A1, CHD4
KAT3B_p300, H3K56ac, H3K36me3, HDAC1, SUZ12, H4K16ac, BRD4, SOX2
rDNA, MajSat, LINE1, SINEB1, Telomere, MinSat, Xist_RNA, ITS1_RNA
Rnu2_RNA, polyA_RNA, Malat1_RNA, dot_int, n_rad_score, n_per_dist(um)
head (first 5 columns × 5 rows):
CPSF6 ATRX H4K8ac HDAC2 H3K9ac
0 -1.08130 -1.10790 -1.07040 -1.2173 -1.3996
1 -0.78539 -0.91556 -1.06820 -1.0802 -1.2301
2 -0.87785 -0.99531 -0.75016 -1.1195 -1.0257
3 -0.82664 -0.93198 -0.97345 -1.0111 -1.3189
4 -0.78823 -0.96247 -0.75354 -1.0791 -1.4937
basic stats on a few markers:
H3K27me3 LaminB1 RNAPIISer5-P SF3A66
count 10912638.00 10912638.00 10912638.00 10912638.00
mean 0.31 0.31 0.28 0.16
std 0.99 1.09 0.96 0.99
min -2.53 -2.47 -2.30 -3.64
25% -0.33 -0.48 -0.50 -0.38
50% 0.15 0.08 0.18 -0.12
75% 0.76 0.85 0.97 0.33
max 23.54 31.91 15.08 28.28
2.4 cells — per-cell metadata¶
cells.index is the composite cell_id ({rep}_{fov}_{cellID}). Each row carries leiden cluster, cell_type label (after applying uns['leiden_to_cell_type']), 3D centroid, nuclear volume, doublet flag, batch.
print(f'shape : {cdata.cells.shape}')
print(f'index : {cdata.cells.index.name!r}, first 5 ids = {cdata.cells.index[:5].tolist()}')
print('\nhead:')
print(cdata.cells.head())
print('\ncell_type counts:')
print(cdata.cells['cell_type'].value_counts())
shape : (1799, 10)
index : 'cell_id', first 5 ids = ['1_0_42', '1_0_47', '1_0_69', '1_0_72', '1_0_73']
head:
leiden cell_type x_centroid ... batch n_transcripts n_genes_by_counts
cell_id ...
1_0_42 0 Granule 1882.598 ... 1 28 12
1_0_47 0 Granule 624.847 ... 1 54 16
1_0_69 0 Granule 1983.711 ... 1 24 9
1_0_72 0 Granule 1255.603 ... 1 42 13
1_0_73 0 Granule 1886.033 ... 1 30 12
[5 rows x 10 columns]
cell_type counts:
cell_type
Granule 1109
Other 323
Bergmann 192
MLI1 90
Purkinje 58
MLI2+PLI 27
Name: count, dtype: int64
2.5 cellm — per-cell multi-dim arrays¶
Right now only contains umap (2-D). Per loader roadmap, cellm['if_mean'] (27-marker per-cell mean IF, P2) is the next key to land here.
print(f'cellm keys: {list(cdata.cellm)}')
for k, v in cdata.cellm.items():
print(f' {k}: shape={v.shape}, dtype={v.dtype}')
print('\numap first 5 rows:')
print(cdata.cellm['umap'][:5])
cellm keys: ['umap']
umap: shape=(1799, 2), dtype=float64
umap first 5 rows:
[[ 6.8091545 10.963283 ]
[ 6.307696 10.393372 ]
[ 6.173099 11.890781 ]
[ 9.671131 13.740751 ]
[10.064677 10.373851 ]]
2.6 traces — per-trace diagnostics¶
Index is trace_id ({rep}_{fov}_{cellID}_{chrom}_a{allele}). Carries the non-canonical DBSCAN allele numbers as diagnostics (the canonical one is already encoded in trace_id).
print(f'shape : {cdata.traces.shape}')
print(f'index : {cdata.traces.index.name!r}, first 5 trace_ids:')
print(cdata.traces.index[:5].tolist())
print('\nhead:')
print(cdata.traces.head())
shape : (59112, 2)
index : 'trace_id', first 5 trace_ids:
['1_0_270_chr10_a1', '1_0_270_chr5_a1', '1_0_270_chrX_a1', '1_0_270_chr14_a1', '1_0_270_chr17_a1']
head:
dbscan_allele dbscan_ldp_allele
trace_id
1_0_270_chr10_a1 1 1
1_0_270_chr5_a1 1 -1
1_0_270_chrX_a1 1 1
1_0_270_chr14_a1 1 1
1_0_270_chr17_a1 1 1
2.7 uns — global metadata¶
for k, v in cdata.uns.items():
if isinstance(v, dict):
print(f' {k}: dict({len(v)} keys)')
for sk, sv in list(v.items())[:5]:
print(f' {sk}: {sv}')
if len(v) > 5:
print(f' … ({len(v)-5} more)')
else:
print(f' {k}: {v}')
allele_col: dbscan_ldp_nbr_allele
genome_assembly: mm10
keep_unclustered: False
source: Takei2025_cerebellum
voxel_xy_nm: 103
voxel_z_nm: 250
xyz_unit: um
zenodo_record: 7693825
leiden_to_cell_type: dict(7 keys)
0: Granule
1: Granule
11: Purkinje
2: Bergmann
4: MLI1
… (2 more)
linked_anndata: dict(4 keys)
cell_id_axis: obs_names
n_obs: 1799
n_vars: 60
path: /Users/weizexu/Projects/U-Chrom/example-data/takei2025_cerebellum/takei2025_cerebellum_rep1.h5ad
2.8 Convenience properties¶
print(f'n_spots : {cdata.n_spots:,}')
print(f'n_traces : {cdata.n_traces:,}')
print(f'n_cells : {cdata.n_cells:,}')
print(f'chroms : {cdata.chroms}')
n_spots : 10,912,638
n_traces : 59,112
n_cells : 1,799
chroms : ['chr1', 'chr10', 'chr11', 'chr12', 'chr13', 'chr14', 'chr15', 'chr16', 'chr17', 'chr18', 'chr19', 'chr2', 'chr3', 'chr4', 'chr5', 'chr6', 'chr7', 'chr8', 'chr9', 'chrX']
3. Subsetting and distance API¶
All three accessors return a new ChromData that keeps coords / spots / tracks / cells / cellm / traces consistent with one another. Nothing is mutated in place.
# Per-chrom subset.
sub_chrom = cdata.get_chrom('chr4') if 'chr4' in cdata.chroms else cdata.get_chrom(cdata.chroms[0])
print(f'after get_chrom({sub_chrom.spots["chrom"].iloc[0]!r}):')
print(sub_chrom)
after get_chrom('chr4'):
ChromData: n_spots=698048, n_traces=2955, n_cells=1762
spots: ['chrom', 'start', 'end', 'trace_id', 'cell_id', 'name']
cells: ['leiden', 'cell_type', 'x_centroid', 'y_centroid', 'z_centroid', 'nuc_volume_um3', 'doublet', 'batch', 'n_transcripts', 'n_genes_by_counts'] (1762 cells)
cellm: {'umap': (1762, 2)}
tracks: ['CPSF6', 'ATRX', 'H4K8ac', 'HDAC2', 'H3K9ac', 'H3K9me3', 'H3K9me2', 'RNAPIISer2-P', 'H3', 'H3K36me2', 'UBTF', 'LaminB1', 'RNAPIISer5-P', 'RYBP', 'HP1beta', 'RING1B', 'H2A.X', 'H3K4me1', 'H4K20me2', 'H3K27me2', 'JARID2', 'SF3A66', 'CBP', 'H2AK119u1', 'EZH2', 'H3K4me2', 'BRG1', 'HP1alpha', 'Fibrillarin', 'KAP1', 'H3K27ac', 'H3K4me3', 'H3K36ac', 'H3K14ac', 'H4K20me1', 'HP1gamma', 'H4K20me3', 'H3K27me3', 'mH2A1', 'CHD4', 'KAT3B_p300', 'H3K56ac', 'H3K36me3', 'HDAC1', 'SUZ12', 'H4K16ac', 'BRD4', 'SOX2', 'rDNA', 'MajSat', 'LINE1', 'SINEB1', 'Telomere', 'MinSat', 'Xist_RNA', 'ITS1_RNA', 'Rnu2_RNA', 'polyA_RNA', 'Malat1_RNA', 'dot_int', 'n_rad_score', 'n_per_dist(um)']
traces: ['dbscan_allele', 'dbscan_ldp_allele'] (2955 traces)
uns: ['allele_col', 'genome_assembly', 'keep_unclustered', 'source', 'voxel_xy_nm', 'voxel_z_nm', 'xyz_unit', 'zenodo_record', 'leiden_to_cell_type', 'linked_anndata']
linked_adata: lazy
# Per-cell subset.
some_cell = cdata.cells.index[0]
sub_cell = cdata.get_cell(some_cell)
print(f'after get_cell({some_cell!r}):')
print(sub_cell)
after get_cell('1_0_42'):
ChromData: n_spots=4183, n_traces=24, n_cells=1
spots: ['chrom', 'start', 'end', 'trace_id', 'cell_id', 'name']
cells: ['leiden', 'cell_type', 'x_centroid', 'y_centroid', 'z_centroid', 'nuc_volume_um3', 'doublet', 'batch', 'n_transcripts', 'n_genes_by_counts'] (1 cells)
cellm: {'umap': (1, 2)}
tracks: ['CPSF6', 'ATRX', 'H4K8ac', 'HDAC2', 'H3K9ac', 'H3K9me3', 'H3K9me2', 'RNAPIISer2-P', 'H3', 'H3K36me2', 'UBTF', 'LaminB1', 'RNAPIISer5-P', 'RYBP', 'HP1beta', 'RING1B', 'H2A.X', 'H3K4me1', 'H4K20me2', 'H3K27me2', 'JARID2', 'SF3A66', 'CBP', 'H2AK119u1', 'EZH2', 'H3K4me2', 'BRG1', 'HP1alpha', 'Fibrillarin', 'KAP1', 'H3K27ac', 'H3K4me3', 'H3K36ac', 'H3K14ac', 'H4K20me1', 'HP1gamma', 'H4K20me3', 'H3K27me3', 'mH2A1', 'CHD4', 'KAT3B_p300', 'H3K56ac', 'H3K36me3', 'HDAC1', 'SUZ12', 'H4K16ac', 'BRD4', 'SOX2', 'rDNA', 'MajSat', 'LINE1', 'SINEB1', 'Telomere', 'MinSat', 'Xist_RNA', 'ITS1_RNA', 'Rnu2_RNA', 'polyA_RNA', 'Malat1_RNA', 'dot_int', 'n_rad_score', 'n_per_dist(um)']
traces: ['dbscan_allele', 'dbscan_ldp_allele'] (24 traces)
uns: ['allele_col', 'genome_assembly', 'keep_unclustered', 'source', 'voxel_xy_nm', 'voxel_z_nm', 'xyz_unit', 'zenodo_record', 'leiden_to_cell_type', 'linked_anndata']
linked_adata: lazy

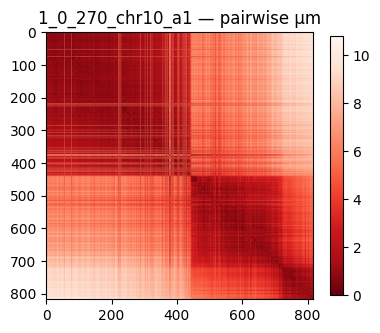

# Per-trace subset + pairwise distance matrix.
some_trace = cdata.spots['trace_id'].iloc[0]
sub_trace = cdata.get_trace(some_trace)
print(f'after get_trace({some_trace!r}): n_spots = {sub_trace.n_spots}')
D = cdata.compute_distances(trace_id=some_trace)
print(f'\ndistance matrix shape = {D.shape}, median(off-diag) = {np.nanmedian(D[D > 0]):.2f} μm')
fig, ax = plt.subplots(figsize=(4, 4))
im = ax.imshow(D, cmap='Reds_r')
ax.set_title(f'{some_trace} — pairwise μm')
plt.colorbar(im, ax=ax, shrink=0.7)
plt.tight_layout(); plt.show()
after get_trace('1_0_270_chr10_a1'): n_spots = 818
distance matrix shape = (818, 818), median(off-diag) = 4.82 μm
4. Paper reproductions¶
Five panels. All inputs come from existing ChromData fields; figures are rendered inline (no plt.savefig).

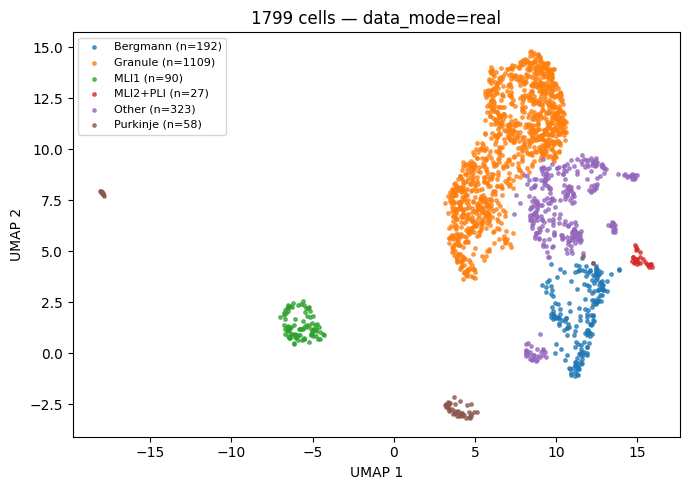

4.1 UMAP painted by cell_type¶
Fields used: cellm['umap'], cells['cell_type'].
umap = cdata.cellm['umap']
ctype = cdata.cells['cell_type'].astype(str).values
fig, ax = plt.subplots(figsize=(7, 5))
for t in sorted(set(ctype)):
m = (ctype == t)
ax.scatter(umap[m, 0], umap[m, 1], s=6, alpha=0.7,
label=f'{t} (n={int(m.sum())})')
ax.legend(loc='best', fontsize=8)
ax.set_xlabel('UMAP 1'); ax.set_ylabel('UMAP 2')
ax.set_title(f'{cdata.n_cells} cells — data_mode={DATA_MODE}')
plt.tight_layout(); plt.show()

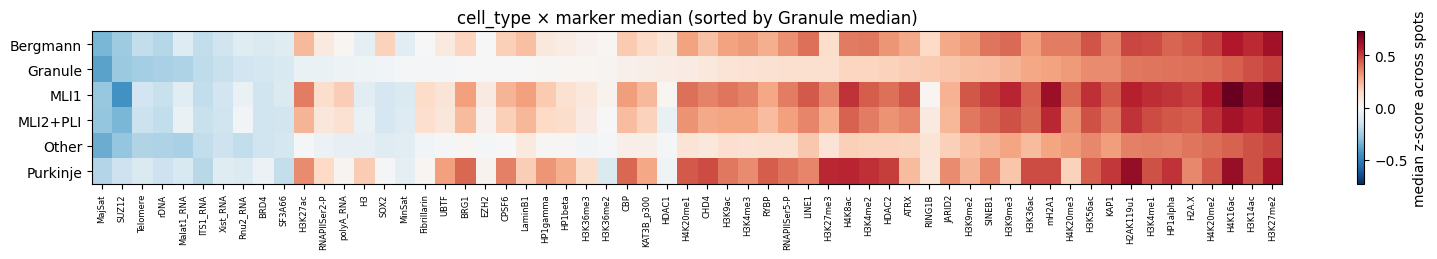

4.2 Cell-type × marker median heatmap¶
Median z-score per (cell_type, marker) over all spots of that cell type. Uses groupby on an external Series — never copies the full tracks frame (matters on rep2 where that would be ~10 GB).
ct_map = cdata.cells['cell_type'].to_dict()
spot_ct = cdata.spots['cell_id'].astype(str).map(ct_map).fillna('Unknown')
zcols = [c for c in cdata.tracks.columns
if c not in ('dot_int', 'n_rad_score', 'n_per_dist(um)')]
H = (cdata.tracks[zcols]
.groupby(spot_ct.values, observed=True)
.median(numeric_only=True))
print(f'aggregated {len(H)} cell types × {H.shape[1]} markers')
ref_row = 'Granule' if 'Granule' in H.index else H.index[0]
order = H.columns[np.argsort(H.loc[ref_row].values)]
H_ord = H[order]
fig, ax = plt.subplots(figsize=(16, max(2, 0.45 * len(H_ord))))
v = float(np.nanmax(np.abs(H_ord.values)))
im = ax.imshow(H_ord.values, aspect='auto', cmap='RdBu_r', vmin=-v, vmax=v)
ax.set_yticks(range(len(H_ord.index))); ax.set_yticklabels(H_ord.index)
ax.set_xticks(range(len(H_ord.columns)))
ax.set_xticklabels(H_ord.columns, rotation=90, fontsize=6)
plt.colorbar(im, ax=ax, label='median z-score across spots')
ax.set_title(f'cell_type × marker median (sorted by {ref_row} median)')
plt.tight_layout(); plt.show()
aggregated 6 cell types × 59 markers
4.3 Fig 5a — chr4 per-1Mb-bin spatial distance heatmaps¶
Three cell types (Purkinje / MLI1 / Bergmann) × one chromosome (chr4). Paper-style pipeline: for each trace, take the per-bin median 3-D coord, then build that trace’s own (n_bins × n_bins) pairwise-distance matrix; average those matrices across all traces of the cell type — i.e. the mean of distances, NOT the distance of the mean structure (the two are not equivalent on single-cell FISH data). Side / top tracks: per-bin median of four chromatin markers.
CELL_TYPES_5A = ['Purkinje', 'MLI1', 'Bergmann']
TARGET_CHROM = 'chr4' if 'chr4' in cdata.chroms else cdata.chroms[0]
MARKERS_5A = ['H4K20me3', 'LaminB1', 'H3K27me3', 'SF3A66']
BIN_SIZE_5A = 1_000_000
MARKER_CMAP = {'H4K20me3': 'Purples', 'LaminB1': 'Greens',
'H3K27me3': 'Blues', 'SF3A66': 'Oranges'}
MARKER_VMAX = {'H4K20me3': 1.5, 'LaminB1': 0.8,
'H3K27me3': 1.5, 'SF3A66': 1.5}
PANEL_VMAX_5A = {'Purkinje': 4.5, 'MLI1': 3.0, 'Bergmann': 3.5}
def per_ct_chrom_mean_distance(cdata, cell_type, chrom):
"""Paper-style: per-trace pairwise distance matrix, averaged across
traces (mean of distances, NOT distance of the mean structure)."""
cells_ct = cdata.cells.index[cdata.cells['cell_type'] == cell_type]
if len(cells_ct) == 0:
return None
sub = cdata.get_chrom(chrom)
if sub.n_spots == 0:
return None
keep = sub.spots['cell_id'].astype(str).isin(cells_ct).values
if keep.sum() == 0:
return None
coords_s = sub.coords[keep]
sp = sub.spots.iloc[keep].copy()
sp['_bin'] = (sp['start'].astype(np.int64) // BIN_SIZE_5A).astype(np.int64)
sp['_x']=coords_s[:,0]; sp['_y']=coords_s[:,1]; sp['_z']=coords_s[:,2]
# Per-trace, per-bin median 3-D coord.
pertrace = (sp.groupby(['trace_id', '_bin'], observed=True)
[['_x','_y','_z']].median())
all_bins = np.sort(pertrace.index.get_level_values('_bin').unique().to_numpy())
n_bins = len(all_bins)
if n_bins < 2:
return None
bin_idx = {int(b): i for i, b in enumerate(all_bins)}
# Accumulate each trace's pairwise distance matrix into a global
# (bin x bin) sum + count, then divide -> mean of per-trace distances.
D_sum = np.zeros((n_bins, n_bins), dtype=np.float64)
D_count = np.zeros((n_bins, n_bins), dtype=np.int32)
for _, grp in pertrace.groupby(level='trace_id', observed=True):
coords = grp[['_x','_y','_z']].to_numpy()
obs_bins = grp.index.get_level_values('_bin').to_numpy()
obs_idx = np.fromiter((bin_idx[int(b)] for b in obs_bins),
dtype=np.int32, count=len(obs_bins))
if obs_idx.size < 2:
continue
d = np.sqrt(((coords[:, None] - coords[None, :]) ** 2).sum(-1))
np.add.at(D_sum, (obs_idx[:, None], obs_idx[None, :]), d)
np.add.at(D_count, (obs_idx[:, None], obs_idx[None, :]), 1)
D_mean = np.where(D_count > 0, D_sum / np.maximum(D_count, 1), np.nan)
bin_marker = {}
for m in MARKERS_5A:
tk = sub.tracks[m].iloc[keep]
bin_marker[m] = tk.groupby(sp['_bin'].values).median().reindex(all_bins).values
return {'bins': all_bins, 'D': D_mean,
'bin_marker': pd.DataFrame(bin_marker, index=all_bins)}
results_5a = {ct: per_ct_chrom_mean_distance(cdata, ct, TARGET_CHROM) for ct in CELL_TYPES_5A}
def _panel_5a(fig, outer_spec, ct, info, chrom):
if info is None:
ax = fig.add_subplot(outer_spec)
ax.text(0.5, 0.5, f'no data\n{ct} {chrom}',
ha='center', va='center', fontsize=8)
ax.set_xticks([]); ax.set_yticks([])
return
inner = gridspec.GridSpecFromSubplotSpec(
5, 5, subplot_spec=outer_spec,
width_ratios=[1,1,1,1,28], height_ratios=[1,1,1,1,28],
wspace=0.05, hspace=0.05,
)
bm = info['bin_marker']
for i, m in enumerate(MARKERS_5A):
ax_h = fig.add_subplot(inner[i, -1])
ax_h.imshow(bm[m].values.reshape(1, -1), aspect='auto',
cmap=MARKER_CMAP[m], vmin=0, vmax=MARKER_VMAX[m])
ax_h.set_xticks([]); ax_h.set_yticks([])
if ct == CELL_TYPES_5A[0]:
ax_h.set_ylabel(m, rotation=0, ha='right', va='center', fontsize=7)
for j, m in enumerate(MARKERS_5A):
ax_v = fig.add_subplot(inner[-1, j])
ax_v.imshow(bm[m].values.reshape(-1, 1), aspect='auto',
cmap=MARKER_CMAP[m], vmin=0, vmax=MARKER_VMAX[m])
ax_v.set_xticks([]); ax_v.set_yticks([])
ax_m = fig.add_subplot(inner[-1, -1])
im = ax_m.imshow(info['D'], aspect='equal', cmap='Reds_r',
vmin=0.5, vmax=PANEL_VMAX_5A.get(ct, 4.5))
ax_m.set_xticks([]); ax_m.set_yticks([])
n_cells = int((cdata.cells['cell_type'] == ct).sum())
ax_m.set_title(f'{ct} — Chr {chrom[3:]}\nn_cells={n_cells}, '
f'n_bins={info["D"].shape[0]}', fontsize=9)
cb = fig.colorbar(im, ax=ax_m, shrink=0.7, pad=0.02)
cb.ax.tick_params(labelsize=6); cb.set_label('μm', fontsize=6)
fig = plt.figure(figsize=(16, 6))
outer = gridspec.GridSpec(1, 3, figure=fig, wspace=0.25)
for col, ct in enumerate(CELL_TYPES_5A):
_panel_5a(fig, outer[col], ct, results_5a[ct], TARGET_CHROM)
fig.suptitle('Fig 5a — per-1Mb-bin mean spatial distance\n'
'top/left tracks: H4K20me3 / LaminB1 / H3K27me3 / SF3A66',
fontsize=11)
plt.show()
4.4 Fig 5c — inter-chrom ECDF stratified by top-5% marker bins¶
For each cell type and marker: take the top-5% (chrom, 1-Mb-bin) ensemble median z-score, compute all inter-chromosomal pairwise bin-centroid distances within each cell where both endpoints fall in the top-5% set. Random null = bootstrap (200 iterations) of random bin sets of matched size. Uses integer-coded keys + numpy boolean masks (~30 s on full rep1).
CELL_TYPES_5C = ['Purkinje', 'MLI1', 'Bergmann']
MARKERS_5C = ['H4K20me3', 'LaminB1', 'H3K27me3', 'SF3A66']
MARKER_COLOR = {'H4K20me3': 'tab:purple', 'LaminB1': 'tab:green',
'H3K27me3': 'tab:cyan', 'SF3A66': 'tab:orange'}
BIN_SIZE_5C = 1_000_000
# Build a global (chrom, bin) → int key.
chrom_arr = cdata.spots['chrom'].astype(str).to_numpy()
bin_arr = (cdata.spots['start'].astype(np.int64).to_numpy() // BIN_SIZE_5C)
key_str = pd.Series(chrom_arr).str.cat(pd.Series(bin_arr).astype(str), sep='|').values
key_cat = pd.Categorical(key_str)
key_codes = key_cat.codes.astype(np.int32)
chrom_of_key = np.array([s.split('|')[0] for s in key_cat.categories])
def compute_inter_chrom_pairs(cdata, cell_type):
cells_ct = cdata.cells.index[cdata.cells['cell_type'] == cell_type]
cell_str = cdata.spots['cell_id'].astype(str)
mask = cell_str.isin(cells_ct).to_numpy()
if mask.sum() == 0:
return np.zeros((0, 3), dtype=np.float64)
df = pd.DataFrame({
'cell_id': cell_str[mask].values,
'_key': key_codes[mask],
'x': cdata.coords[mask, 0],
'y': cdata.coords[mask, 1],
'z': cdata.coords[mask, 2],
})
bin_pos = (df.groupby(['cell_id', '_key'], observed=True)
[['x', 'y', 'z']].mean().reset_index())
bin_pos['_chrom_id'] = chrom_of_key[bin_pos['_key'].values]
out_rows = []
for cid, grp in bin_pos.groupby('cell_id', observed=True):
n = len(grp)
if n < 2: continue
coords = grp[['x', 'y', 'z']].to_numpy()
keys = grp['_key'].to_numpy()
chrs = grp['_chrom_id'].to_numpy()
i, j = np.triu_indices(n, k=1)
inter = chrs[i] != chrs[j]
if not inter.any(): continue
d = np.sqrt(((coords[i] - coords[j]) ** 2).sum(-1))
ii, jj = i[inter], j[inter]
out_rows.append(np.column_stack([keys[ii], keys[jj], d[inter]]))
if not out_rows:
return np.zeros((0, 3), dtype=np.float64)
return np.vstack(out_rows)
def top5_keys(cdata, cell_type, markers):
cells_ct = cdata.cells.index[cdata.cells['cell_type'] == cell_type]
cell_str = cdata.spots['cell_id'].astype(str)
mask = cell_str.isin(cells_ct).to_numpy()
if mask.sum() == 0:
return {m: np.array([], dtype=np.int32) for m in markers}, np.array([], dtype=np.int32)
key_sub = key_codes[mask]
out = {}
for m in markers:
vals = cdata.tracks[m].iloc[mask].to_numpy()
bin_med = pd.Series(vals).groupby(key_sub).median()
thr = bin_med.quantile(0.95)
out[m] = bin_med.index[bin_med >= thr].to_numpy().astype(np.int32)
return out, np.unique(key_sub)
def ecdf_y(values, xs):
if len(values) == 0:
return np.full_like(xs, np.nan, dtype=float)
s = np.sort(values)
return np.searchsorted(s, xs, side='right') / len(s)
ecdf_pairs = {ct: compute_inter_chrom_pairs(cdata, ct) for ct in CELL_TYPES_5C}
for ct, arr in ecdf_pairs.items():
print(f'{ct}: {len(arr):,} inter-chrom 1Mb-bin pairs')
rng = np.random.default_rng(42)
fig, axes = plt.subplots(1, 3, figsize=(15, 4), sharey=True)
for ax, ct in zip(axes, CELL_TYPES_5C):
pairs = ecdf_pairs[ct]
if len(pairs) == 0:
ax.set_title(f'{ct} (no data)'); continue
key_a = pairs[:, 0].astype(np.int32)
key_b = pairs[:, 1].astype(np.int32)
dist = pairs[:, 2]
top5, obs_keys = top5_keys(cdata, ct, MARKERS_5C)
xs = np.linspace(np.nanpercentile(dist, 1), np.nanpercentile(dist, 99), 200)
sizes = [len(s) for s in top5.values() if len(s) > 0]
target = int(np.median(sizes)) if sizes else 50
# Random null
boot_y = []
n_boot = 200
if obs_keys.size > 0:
max_key = int(obs_keys.max()) + 2
for _ in range(n_boot):
rs = rng.choice(obs_keys, size=min(target, len(obs_keys)), replace=False)
mark = np.zeros(max_key, dtype=bool); mark[rs] = True
m1 = mark[key_a] & mark[key_b]
if m1.sum() == 0:
boot_y.append(np.full_like(xs, np.nan, dtype=float)); continue
boot_y.append(ecdf_y(dist[m1], xs))
boot_y = np.array(boot_y)
mean = np.nanmean(boot_y, 0); std = np.nanstd(boot_y, 0)
ax.plot(xs, mean, color='gray', lw=1, label='Random')
ax.fill_between(xs, mean - std, mean + std, color='gray', alpha=0.25)
for m, keys in top5.items():
if len(keys) == 0: continue
max_k = int(max(obs_keys.max() if obs_keys.size else 0, keys.max())) + 2
mark = np.zeros(max_k, dtype=bool); mark[keys] = True
mm = mark[key_a] & mark[key_b]
if mm.sum() == 0: continue
d = dist[mm]
s = np.sort(d)
y = np.arange(1, len(s) + 1) / len(s)
ax.plot(s, y, color=MARKER_COLOR[m], lw=1.6, label=f'{m} (n={len(d)})')
ax.set_xlabel('Inter-chrom spatial distance (μm)')
ax.set_ylabel('Fraction')
ax.set_title(ct)
ax.legend(fontsize=7, loc='lower right')
fig.suptitle('Fig 5c — inter-chrom distance ECDF stratified by top-5% marker bins',
fontsize=11)
plt.tight_layout(); plt.show()
Purkinje: 94,018,361 inter-chrom 1Mb-bin pairs
MLI1: 141,150,833 inter-chrom 1Mb-bin pairs
Bergmann: 324,960,204 inter-chrom 1Mb-bin pairs
4.5 Fig 3f — RNAPIISer5-P z-score along long-gene regions¶
5 cell types × 3 chrom regions of RNAPIISer5-P z-score; per 100-kb bin, smoothed 500 kb. Top strip = >200 kb long genes with named-gene arrows. snRNA-seq row from the paper is omitted (needs scRNA reference matrix — P3 deferred).
REGIONS_3F = [
('chr1', 95.0, 140.0),
('chr5', 75.0, 95.0),
('chr6', 20.0, 25.0),
]
CELL_TYPES_3F = ['Granule', 'Purkinje', 'MLI1', 'MLI2+PLI', 'Bergmann']
CT_COLOR_3F = {
'Granule': '#5cad9e', 'Purkinje': '#c95249', 'MLI1': '#a36cad',
'MLI2+PLI': '#a8a55a', 'Bergmann': '#3b5b8c',
}
NAMED_GENES = {'Pam', 'Cntnap5b', 'Dpp10',
'Adgrl3', 'Slc4a4', 'Kcnd2', 'Cadps2'}
BIN_SIZE_3F = 100_000
SMOOTH_3F = 5
def load_long_genes(chroms):
gene_csv = Path('/Volumes/Extreme SSD/U-Chrom/dna-seqfish-plus-multi-omics/'
'data/annotation/mm10_25kb_bins_genes_09022022.csv')
if not gene_csv.exists():
return pd.DataFrame(columns=['chrom','gene','start','end','length'])
ann = pd.read_csv(gene_csv, low_memory=False)
ann = ann[ann['chrom'].isin(chroms) & (ann['gene'] != '.')]
spans = (ann.groupby(['chrom', 'gene'])
.agg(start=('start', 'min'), end=('end', 'max')))
spans['length'] = spans['end'] - spans['start']
return spans[spans['length'] >= 200_000].reset_index()
def per_ct_region_track(cdata, cell_type, chrom, start_mb, end_mb):
cells_ct = cdata.cells.index[cdata.cells['cell_type'] == cell_type]
sub = cdata.get_chrom(chrom) if chrom in cdata.chroms else None
if sub is None or sub.n_spots == 0:
return None, None
mask = sub.spots['cell_id'].astype(str).isin(cells_ct).to_numpy()
if mask.sum() == 0: return None, None
starts = sub.spots['start'].astype(np.int64).to_numpy()[mask]
in_region = (starts >= start_mb*1e6) & (starts < end_mb*1e6)
if in_region.sum() == 0: return None, None
starts = starts[in_region]
vals = sub.tracks['RNAPIISer5-P'].iloc[mask].to_numpy()[in_region]
bins = (starts // BIN_SIZE_3F).astype(np.int64)
df = pd.DataFrame({'_bin': bins, 'v': vals})
bin_med = df.groupby('_bin', observed=True)['v'].median()
grid = np.arange(int(start_mb*1e6 // BIN_SIZE_3F),
int(end_mb*1e6 // BIN_SIZE_3F) + 1)
s = bin_med.reindex(grid).rolling(SMOOTH_3F, min_periods=1, center=True).median()
x = (grid * BIN_SIZE_3F + BIN_SIZE_3F/2) / 1e6
return x, s.values
long_genes = load_long_genes([r[0] for r in REGIONS_3F])
fig = plt.figure(figsize=(13, 11))
gs = fig.add_gridspec(nrows=6, ncols=3,
height_ratios=[0.6, 1, 1, 1, 1, 1],
hspace=0.15, wspace=0.12)
for col, (chrom, s_mb, e_mb) in enumerate(REGIONS_3F):
ax = fig.add_subplot(gs[0, col])
if len(long_genes):
sub_g = long_genes[(long_genes['chrom'] == chrom)
& (long_genes['end'] > s_mb*1e6)
& (long_genes['start'] < e_mb*1e6)]
for _, g in sub_g.iterrows():
x0 = max(g['start'], s_mb*1e6) / 1e6
x1 = min(g['end'], e_mb*1e6) / 1e6
ax.add_patch(Rectangle((x0, 0.05), x1 - x0, 0.7,
facecolor='#3a1f4a', edgecolor='none'))
if g['gene'] in NAMED_GENES:
mid = (x0 + x1) / 2
ax.annotate(g['gene'], xy=(mid, 0.78), xytext=(mid, 1.05),
ha='center', va='bottom', fontsize=8, fontstyle='italic',
arrowprops=dict(arrowstyle='->', color='red', lw=1))
ax.set_xlim(s_mb, e_mb); ax.set_ylim(0, 1.2)
ax.set_xticks([]); ax.set_yticks([])
for sp in ('top','right','left','bottom'): ax.spines[sp].set_visible(False)
if col == 0:
ax.text(-0.06, 0.4, 'Long\ngenes\n(>200 kb)', transform=ax.transAxes,
ha='right', va='center', fontsize=8)
for row, ct in enumerate(CELL_TYPES_3F, start=1):
for col, (chrom, s_mb, e_mb) in enumerate(REGIONS_3F):
ax = fig.add_subplot(gs[row, col])
x, y = per_ct_region_track(cdata, ct, chrom, s_mb, e_mb)
if x is None:
ax.text(0.5, 0.5, f'no data\n{ct} {chrom}', ha='center', va='center',
transform=ax.transAxes, fontsize=8)
ax.set_xticks([]); ax.set_yticks([]); continue
c = CT_COLOR_3F[ct]
ax.fill_between(x, 0, y, where=(y > 0), color=c, alpha=0.9, step='mid')
ax.fill_between(x, 0, y, where=(y < 0), color=c, alpha=0.45, step='mid')
ax.plot(x, y, color=c, lw=0.4)
ax.axhline(0, color='k', lw=0.3)
ax.set_xlim(s_mb, e_mb); ax.set_ylim(-0.8, 1.5)
ax.text(0.02, 0.82, ct, transform=ax.transAxes,
fontsize=10, fontweight='bold')
if row == len(CELL_TYPES_3F):
ax.set_xlabel(f'Chr {chrom[3:]} (Mb)', fontsize=10)
else:
ax.set_xticklabels([])
if col == 0:
ax.set_yticks([0, 1])
if row == 3:
ax.set_ylabel('RNAPIISer5-P\nz-score', fontsize=9)
else:
ax.set_yticks([])
for sp in ('top', 'right'): ax.spines[sp].set_visible(False)
fig.suptitle('Fig 3f — RNAPIISer5-P z-score along long-gene regions\n'
'(snRNA-seq row omitted — requires P3 RNA seqFISH loader)',
fontsize=11)
plt.show()
5. Framework gap notes¶
What this walkthrough taught us about the current ChromData /
uchrom.io.seqfish_multiomics surface after linking the Takei 2025
DNA tracing data with the RNA expression matrix:
Resolved in this branch¶
load_takei2025_cerebellum()is now the primary entry point for this dataset. It reuses existing paired.h5cd/.h5adartifacts, or downloads the Zenodo/GitHub sources and builds them when missing.The loader returns a
ChromData; the linked RNA expression matrix is available atcdata.linked_adata. The.h5cdstores the lazy path to the paired.h5adinuns['linked_anndata'].Cell IDs are aligned across chromatin tracing and RNA expression.
adata.obsfields such asn_transcriptsandn_genes_by_countsare merged back intocdata.cells.coords,spots[chrom/start/end/trace_id/cell_id], the 62trackscolumns,cells['cell_type'],cellm['umap'],cdata.linked_adata, and the subset accessors (get_chrom,get_cell,get_trace) are enough for the walkthrough panels above, except for the paper’s omitted snRNA-seq row in Fig 3f.
Remaining data/model gaps¶
What |
Why it still matters |
|---|---|
|
Would provide a compact per-cell marker matrix instead of recomputing summaries from spot-level tracks. |
Raw RNA seqFISH spots |
The current |
scRNA reference matrix |
Needed to reproduce the snRNA-seq comparison row in Fig 3f. |
Gene annotation cache for long-gene tracks |
The Fig 3f helper still depends on an external local annotation CSV when drawing the long-gene strip. |
Algorithm-level gaps (downstream modules)¶
Several inline helpers above are prototype implementations that
deserve a proper home and should operate directly on ChromData plus
its optional linked_adata:
Inline helper |
Should live in |
|---|---|
|
|
|
|
|
|
RNA expression accessors / plotting helpers |
A small multi-omics plotting layer that can consume |
These are the natural next-PR boundaries.
