The .chromdata.zarr store

A ChromData lives on disk as a .chromdata.zarr store (Zarr v3 + Parquet; .cdz is the same tree in one zip file). The store is laid out so that a cell, a trace or a chromosome can be read alone — from a local disk or over HTTP — and data larger than memory can be written and processed in pieces. Contact maps and expression matrices stay in their own files and are linked; for a self-contained store (an atlas on object storage) they can be embedded.

Modules: chromdata (ChromData.write / read / writer, chromdata.settings, chromdata.embedded, chromdata.catalog). Data: Takei et al. 2021, Nature 590:344 (DNA seqFISH+, 201 mouse ES cells): the 4DN FOF-CT core table 4DNFIHF3JCBY.csv and its cell table 4DNFIFINA2U9.csv, which ds.fetch("takei") / ds.fetch("takei_tables") download once from 4DN (23 MB); Stevens et al. 2017, Nature 544:59 (8 haploid mouse ES cells: published NucDynamics structures, 10 models per cell, with their single-cell Hi-C contacts as .scool / .mcool): the store of the public U-Chrom atlas, ds.atlas("stevens2017_mesc") (26 MB; built by apps/atlas/recipes/build_stevens2017.py from GEO GSE80280), read over HTTP and copied to _out/ with its contact maps; and three more atlas stores read over HTTP (HiRES mouse embryo: Liu et al. 2023, Science, doi:10.1126/science.adg3797; Takei 2025 cerebellum: Takei et al. 2025, Nature, doi:10.1038/s41586-025-08838-x; scHiCAR mouse cortex, GEO GSE305439). Runtime: about 1.5 min, most of it reading over HTTP. The data model itself is the subject of chromdata_basics.

import json
import os
import shutil
import time
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import chromdata
import uchrom.datasets as ds
from chromdata import ChromData

plt.rcParams["figure.dpi"] = 90

OUT = Path("_out") / "chromdata_stores"            # outputs: tutorials/_out/ (ignored by git)
shutil.rmtree(OUT, ignore_errors=True); OUT.mkdir(parents=True)

CORE = ds.fetch("takei")                            # Takei 2021 FOF-CT core table (4DN, 22 MB; downloaded once)
CELLS = ds.fetch("takei_tables") / "4DNFIFINA2U9.csv"   # ... and its cell table (4DN)


def size(path):
    # bytes of a file or a directory tree
    path = Path(path)
    return path.stat().st_size if path.is_file() else sum(f.stat().st_size for f in path.rglob("*") if f.is_file())


def timed(fn, *args, repeat=3, **kwargs):
    # (result, best wall time in s of `repeat` calls)
    best = np.inf
    for _ in range(repeat):
        t0 = time.perf_counter(); out = fn(*args, **kwargs); best = min(best, time.perf_counter() - t0)
    return out, best


print("chromdata", chromdata.__version__)

chromdata 0.1.0

write and read

The container follows the suffix: <name>.chromdata.zarr is a directory, <name>.cdz the same tree in one uncompressed zip file (one file to download or attach). Writers are atomic (a temporary sibling, then a rename). The Takei 2021 table with its cell table:

cd = ChromData.from_fofct(CORE, cell_table=CELLS)
print(cd.n_cells, "cells,", cd.n_traces, "traces,", cd.n_spots, "spots,", cd.n_bins, "bins")

rows = []
for name in ("takei2021.chromdata.zarr", "takei2021.cdz"):
    path = OUT / name
    t0 = time.perf_counter(); cd.write(path); t_write = time.perf_counter() - t0
    back, t_read = timed(ChromData.read, path)
    rows.append({"file": name, "MB": size(path) / 1e6, "write s": t_write, "read s": t_read})
rows.append({"file": f"{CORE.name} (FOF-CT csv)", "MB": size(CORE) / 1e6, "write s": np.nan,
             "read s": timed(ChromData.from_fofct, CORE, cell_table=CELLS, repeat=1)[1]})
pd.DataFrame(rows).set_index("file").round(3)

201 cells, 8285 traces, 316995 spots, 1200 bins

	MB	write s	read s
file
takei2021.chromdata.zarr	4.811	1.985	0.027
takei2021.cdz	4.790	0.431	0.028
4DNFIHF3JCBY.csv (FOF-CT csv)	21.859	NaN	0.309

Every spot comes back with its values; check after sorting both sides by spot_id:

def by_spot(x):
    return np.argsort(x.spots["spot_id"].to_numpy())

a, b = by_spot(cd), by_spot(back)
print("coords:", np.array_equal(cd.coords[a], back.coords[b]),
      "| spots:", cd.spots.iloc[a].reset_index(drop=True).equals(back.spots.iloc[b].reset_index(drop=True)),
      "| bins:", cd.bins.equals(back.bins), "| cells:", cd.cells.equals(back.cells),
      "| uns:", json.dumps(cd.uns, sort_keys=True, default=str) == json.dumps(back.uns, sort_keys=True, default=str))

coords: True | spots: True | bins: True | cells: True | uns: True

Row order and original_order=True

The writer sorts the spots — by cell, trace, chromosome and bin (the order of the categories; trace 0_1_10_0 sorts before 0_1_1_0) — so that a cell or a trace is one contiguous slice. A read returns that order. The store also keeps each spot’s original row (index/source_row); original_order=True restores the order of the object that was written.

cols = ["trace_id", "cell_id", "spot_id", "chrom", "start"]
print("in memory (file order):"); print(cd.spots[cols].head(3).to_string())
print("read back (stored order):"); print(back.spots[cols].head(3).to_string())
same = ChromData.read(OUT / "takei2021.chromdata.zarr", original_order=True)
print("original_order=True: spots equal:", same.spots.equals(cd.spots), "| coords equal:", np.array_equal(same.coords, cd.coords))

in memory (file order):
  trace_id cell_id  spot_id chrom      start
0  0_1_1_0     0_1   705144  chr1  135625000
1  0_1_1_0     0_1   705145  chr1  135650000
2  0_1_1_1     0_1   705146  chr1  135650000
read back (stored order):
   trace_id cell_id  spot_id  chrom     start
0  0_1_10_0     0_1   705835  chr10  75425000
1  0_1_10_0     0_1   705837  chr10  75450000
2  0_1_10_0     0_1   705839  chr10  75475000
original_order=True: spots equal: True | coords equal: True

The layout in brief

Everything with rows is Parquet, everything n-dimensional a Zarr array, metadata are JSON attributes. Each spot-aligned value is stored once: coordinates and the key columns in tables/coords/, partitioned by chromosome (chrom=<name>/part-0.parquet, sorted by cell, trace and bin); every other spot column in cell-sorted primary tables (tables/primary/); index/ holds the row offsets of every (cell, trace, chromosome) run, which is what lets a reader fetch one cell or one chromosome alone. The full specification is packages/chromdata/spec.md. write() options: coord_dtype="float32" (coordinates stored as float32, float64 in memory), row_group_rows, compression_level.

store = OUT / "takei2021.chromdata.zarr"
for p in sorted(store.iterdir()):
    n = sum(1 for _ in p.rglob("*")) if p.is_dir() else 1
    print(f"{p.name + ('/' if p.is_dir() else ''):14s} {size(p) / 1e6:6.2f} MB  {n:3d} entries")
parts = sorted((store / "tables" / "coords").iterdir())
print(len(parts), "coordinate partitions, e.g.", [p.name for p in parts[:3]])
attrs = json.loads((store / "zarr.json").read_text())["attributes"]
print({k: attrs[k] for k in ("uchrom_format_version", "uchrom_version")},
      {k: attrs["uchrom"][k] for k in ("layout", "spot_order", "coords_order", "n_spots", "n_cells")})

binm/            0.00 MB    1 entries
cellm/           0.00 MB    1 entries
contacts/        0.00 MB    1 entries
index/           0.47 MB   83 entries
links/           0.00 MB    1 entries
results/         0.00 MB    1 entries
tables/          4.30 MB   51 entries
uns/             0.00 MB    1 entries
zarr.json        0.03 MB    1 entries
20 coordinate partitions, e.g. ['chrom=chr1', 'chrom=chr10', 'chrom=chr11']
{'uchrom_format_version': '2.3', 'uchrom_version': '0.2.0'} {'layout': 'primary+coords', 'spot_order': 'cell,trace,chrom,bin', 'coords_order': 'chrom,cell,trace,bin', 'n_spots': 316995, 'n_cells': 201}

A partition is a plain Parquet file (trace and cell ids as integer codes into tables/categories/), so pandas, Arrow, DuckDB or Polars can read the store without chromdata:

chr3 = pd.read_parquet(store / "tables" / "coords" / "chrom=chr3" / "part-0.parquet")
print(chr3.shape, dict(chr3.dtypes.astype(str)))
chr3.head(3)

(18150, 6) {'bin_id': 'int32', 'trace_id': 'int16', 'cell_id': 'int16', 'x': 'float64', 'y': 'float64', 'z': 'float64'}

	bin_id	trace_id	cell_id	x	y	z
0	720	434	0	171.151	18.165	2.530
1	721	434	0	171.100	18.199	2.446
2	723	434	0	171.057	18.220	2.574

A local copy of an atlas store

The Stevens 2017 store of the public atlas holds 8 cells × ~25,700 particles of 100 kb with ten models per cell — model 1 in coords, models 2–10 as layers, 10 coordinate sets per spot — and two contact maps of the same cells: one per cell (1 Mb) and the merged map of the 8 cells. ds.atlas("stevens2017_mesc") opens it over HTTP, backed (more in the last section). The local sections below need it on disk the way apps/atlas/recipes/build_stevens2017.py leaves it: the store, and next to it the two cooler files it links. to_memory() reads everything over HTTP and write makes the local store; the atlas store also carries embedded copies of the two maps (see below), which chromdata.embedded.export_scool / export_mcool write back to the cooler files the link records name:

from chromdata.embedded import export_mcool, export_scool

remote = ds.atlas("stevens2017_mesc")                   # backed, over HTTP
url = ds.list_atlas().loc["stevens2017_mesc", "url"]
STEVENS = OUT / "stevens2017_mesc"; STEVENS.mkdir()
SPATH = STEVENS / "stevens2017_mesc.chromdata.zarr"

t0 = time.perf_counter()
remote.to_memory().write(SPATH)                         # coordinates, the 10 models, tables, link records
t_copy = time.perf_counter() - t0
for key, rec in remote.uns["linked_scool"].items():    # one map per cell -> .scool
    export_scool(url, key, STEVENS / rec["path"])
for key, rec in remote.uns["linked_cool"].items():     # the merged map -> .mcool
    export_mcool(url, key, STEVENS / rec["path"])
print(f"store read over HTTP and written in {t_copy:.0f} s; maps exported in {time.perf_counter() - t0 - t_copy:.0f} s")
for p in sorted(STEVENS.iterdir()):
    print(f"  {p.name:36s} {size(p) / 1e6:5.1f} MB")

store read over HTTP and written in 14 s; maps exported in 37 s
  stevens2017_mesc.chromdata.zarr       23.1 MB
  stevens2017_mesc_bulk.mcool            1.1 MB
  stevens2017_mesc_cells_1Mb.scool       0.5 MB

Reading part of a store

columns= / tracks= choose the spot-aligned columns to read: columns="coords" reads coordinates and keys only, a list adds the named spot columns, spot tracks or layers. On the local Stevens 2017 store:

SPATH = STEVENS / "stevens2017_mesc.chromdata.zarr"
full, t_full = timed(ChromData.read, SPATH)
print(f"{SPATH.name}: {size(SPATH / 'tables') / 1e6:.1f} MB of tables; {full.n_cells} cells, {full.n_spots:,} spots, "
      f"layers {list(full.layers)[:2]} ... {list(full.layers)[-1]}")
sel = {"everything": None, 'columns="coords"': "coords", 'columns=["model_2"]': ["model_2"]}
pd.DataFrame([{"read": k, "s": timed(ChromData.read, SPATH, columns=v)[1],
               "layers": len(ChromData.read(SPATH, columns=v).layers)} for k, v in sel.items()]).set_index("read").round(3)

stevens2017_mesc.chromdata.zarr: 23.1 MB of tables; 8 cells, 205,706 spots, layers ['model_2', 'model_3'] ... model_10

	s	layers
read
everything	0.087	9
columns="coords"	0.036	0
columns=["model_2"]	0.042	1

Backed mode

read(path, backed=True) loads only the small tables (bins, cells, traces, uns, results, …). coords, spots, spot_tracks and layers stay on disk as proxies; get_cell / get_trace / get_chrom / cd[rows] read only the row ranges they need and return ordinary in-memory ChromData objects.

bk, t_open = timed(ChromData.read, SPATH, backed=True)
print(f"open backed: {t_open * 1e3:.0f} ms (full read {t_full * 1e3:.0f} ms)")
print(bk.coords, "|", bk.layers["model_2"])
print(bk.spots)
print("first rows read on access:", bk.coords[:2].round(2).tolist())

ops = {
    'get_cell("Cell_3")': lambda: bk.get_cell("Cell_3"),
    'get_cell("Cell_3", columns="coords")': lambda: bk.get_cell("Cell_3", columns="coords"),
    'get_trace("Cell_3_chr7", columns="coords")': lambda: bk.get_trace("Cell_3_chr7", columns="coords"),
    'get_chrom("chr2", columns="coords")': lambda: bk.get_chrom("chr2", columns="coords"),
    "bk[100_000:101_000]": lambda: bk[100_000:101_000],
}
table = []
for name, fn in ops.items():
    sub, t = timed(fn)
    table.append({"call": name, "ms": t * 1e3, "n_spots": sub.n_spots, "layers": len(sub.layers),
                  "in memory": type(sub).__name__ == "ChromData"})
pd.DataFrame(table).set_index("call").round(1)

open backed: 16 ms (full read 85 ms)
<BackedArray spots shape=(205706, 3)> | <BackedArray layers/model_2 shape=(205706, 3)>
<BackedFrame spots: 205706 rows x 6 columns ['chrom', 'start', 'end', 'trace_id', 'cell_id', 'bin_id']>
first rows read on access: [[9.94, -6.49, -1.41], [9.19, -7.26, -0.92]]

	ms	n_spots	layers	in memory
call
get_cell("Cell_3")	5.4	25717	9	True
get_cell("Cell_3", columns="coords")	3.9	25717	0	True
get_trace("Cell_3_chr7", columns="coords")	1.2	1423	0	True
get_chrom("chr2", columns="coords")	1.9	14323	0	True
bk[100_000:101_000]	3.3	1000	9	True

The backed object is read-only for spot-aligned data; to_memory() (optionally with columns=) loads an editable copy. Results and intervals computed on subsets are written back to an in-memory object.

try:
    bk.coords = np.zeros((3, 3))
except AttributeError as err:
    print("AttributeError:", err)
mem = bk.to_memory(columns="coords")
print(type(mem).__name__, mem.n_spots, "spots,", len(mem.layers), "layers")

AttributeError: backed ChromData is read-only for spot-aligned data (coords, spots, spot_tracks, layers); call cd.to_memory() for an editable copy
ChromData 205706 spots, 0 layers

Streaming: iter_cells, iter_traces and the memory budget

iter_cells(batch=) / iter_traces(batch=) yield in-memory chunks of whole cells / traces; backed and in-memory objects yield identical chunks. batch="auto" sizes the chunks from chromdata.settings.memory_budget (default: half of the available RAM; uchrom.settings is the same object), which also bounds the streaming writer and the streaming callers of uchrom.

print(chromdata.settings)
nbytes = full.coords.nbytes * (1 + len(full.layers))
print(f"all 10 models in memory: {nbytes / 1e6:.0f} MB of coordinates")
rows = []
for budget in ("16MB", "64MB", "1GB"):
    chromdata.settings.memory_budget = budget
    chunks = [c.n_spots for c in bk.iter_traces(batch="auto")]
    rows.append({"memory_budget": budget, "chunks": len(chunks), "largest chunk (spots)": max(chunks)})
chromdata.settings.memory_budget = None          # back to the default
display(pd.DataFrame(rows).set_index("memory_budget"))

same_chunks = all(np.array_equal(x.coords, y.coords) and x.spots.equals(y.spots)
                  for x, y in zip(full.iter_cells(batch=3), bk.iter_cells(batch=3)))
print("iter_cells(batch=3): in-memory and backed chunks identical:", same_chunks)

chromdata.settings(memory_budget=11.4 GB (default), default_batch='auto')
all 10 models in memory: 49 MB of coordinates

	chunks	largest chunk (spots)
memory_budget
16MB	54	5775
64MB	11	24837
1GB	1	205706

iter_cells(batch=3): in-memory and backed chunks identical: True

A streaming computation reads one chunk at a time. Structure precision per cell — the RMSD between model 1 and model 2 after optimal superposition (Kabsch) — needs only coords and the layer model_2:

def rmsd(a, b):
    # RMSD (input units) of b onto a after translation + rotation
    a0, b0 = a - a.mean(0), b - b.mean(0)
    u, _, vt = np.linalg.svd(b0.T @ a0)
    u[:, -1] *= np.sign(np.linalg.det(u @ vt))          # a proper rotation, no reflection
    return float(np.sqrt(((b0 @ u @ vt - a0) ** 2).sum(1).mean()))

t0 = time.perf_counter()
prec = {}
for chunk in bk.iter_cells(batch=1, columns=["model_2"]):
    prec[str(chunk.spots["cell_id"].iloc[0])] = rmsd(chunk.coords, chunk.layers["model_2"])
print(f"{time.perf_counter() - t0:.2f} s; RMSD model 1 vs 2 (particle radii):",
      {k: round(v, 2) for k, v in prec.items()})

0.04 s; RMSD model 1 vs 2 (particle radii): {'Cell_1': 0.53, 'Cell_2': 0.98, 'Cell_3': 0.98, 'Cell_4': 1.0, 'Cell_5': 1.42, 'Cell_6': 1.42, 'Cell_7': 2.99, 'Cell_8': 1.92}

Writing larger-than-memory data: ChromData.writer

The streaming writer takes chunks — ChromData objects, or coords= + spots= (+ spot_tracks=) — spills them to disk sorted by chromosome and cell, and on finish() merges each chromosome in pieces that fit the memory budget. The result is the same store ChromData(...).write() produces for the concatenated input. Here the Takei 2021 core table is read in 50,000-row pandas chunks:

with open(CORE) as fh:
    header = [line for line in fh if line.lstrip('"').startswith("#")]
names = next(l for l in header if l.startswith("##columns=")).split("=", 1)[1].strip().strip(",").strip("()").split(",")

t0 = time.perf_counter()
with ChromData.writer(OUT / "takei2021_streamed.chromdata.zarr", memory_budget="64MB") as w:
    for chunk in pd.read_csv(CORE, skiprows=len(header), header=None, names=names, chunksize=50_000):
        spots = pd.DataFrame({"chrom": chunk["Chrom"], "start": chunk["Chrom_Start"], "end": chunk["Chrom_End"],
                              "trace_id": chunk["Trace_ID"], "spot_id": chunk["Spot_ID"], "cell_id": chunk["Cell_ID"],
                              "extra_cell_roi_id": chunk["Extra_Cell_ROI_ID"]})
        w.append(coords=chunk[["X", "Y", "Z"]].to_numpy(), spots=spots)
    w.finish(cells=cd.cells, uns={"genome_assembly": "GRCm38/mm10", "xyz_unit": "micron"})
print(f"streamed {w.n_spots:,} spots in {time.perf_counter() - t0:.1f} s")

streamed = ChromData.read(OUT / "takei2021_streamed.chromdata.zarr")
print("same as the in-memory write: coords", np.array_equal(streamed.coords, back.coords),
      "| spots", streamed.spots.equals(back.spots), "| bins", streamed.bins.equals(back.bins),
      "| cells", streamed.cells.equals(back.cells))

streamed 316,995 spots in 1.2 s
same as the in-memory write: coords True | spots True | bins True | cells True

from_fofct(..., out=) does exactly this for FOF-CT tables (companion tables included) and returns the store opened backed; the seqFISH+ multi-omics loader of uchrom.io has the same out= option.

t0 = time.perf_counter()
fofct_backed = ChromData.from_fofct(CORE, cell_table=CELLS, out=OUT / "takei2021_from_fofct.chromdata.zarr",
                                    chunksize=50_000, memory_budget="64MB")
print(f"{time.perf_counter() - t0:.1f} s ->", type(fofct_backed).__name__, f"{fofct_backed.n_spots:,} spots")
m = fofct_backed.to_memory()
print("equal to the in-memory import:", np.array_equal(m.coords, back.coords), m.spots.equals(back.spots), m.cells.equals(back.cells))

1.3 s -> BackedChromData 316,995 spots
equal to the in-memory import: True True True

Linked modalities

Contacts and expression matrices are not copied into a ChromData: the store records a link (path + metadata) in uns and the file stays where it is. link_cool (one bulk / pseudo-bulk map, .cool / .mcool) and link_scool (one map per cell) write the records; relative paths resolve against the directory of the store, so a dataset folder can be moved as a whole. The Stevens 2017 store links its cells’ contacts (1 Mb per cell) and the merged map of the 8 cells — the two files next to it:

print(json.dumps({k: full.uns[k] for k in ("linked_cool", "linked_scool")}, indent=1))
print("validate_links():", full.validate_links())

{
 "linked_cool": {
  "bulk": {
   "path": "stevens2017_mesc_bulk.mcool",
   "format": "mcool",
   "label": "All 8 cells (merged)",
   "genome_assembly": "mm10"
  }
 },
 "linked_scool": {
  "per_cell": {
   "path": "stevens2017_mesc_cells_1Mb.scool",
   "format": "scool",
   "cell_name": "cell_id",
   "genome_assembly": "mm10",
   "bin_size": 1000000,
   "coordinate_status": "contacts, not xyz coordinates",
   "label": "Per cell"
  }
 }
}
validate_links(): []

load_linked_scool() lists the cells; with cell= it returns a cooler.Cooler, and linked_cool_path() the path of the bulk map. Contacts and coordinates of one cell side by side: in the published structure of Cell 1, chromatin regions that were in contact are much closer than regions at the same genomic distance that were not.

import cooler

print(full.load_linked_scool(key="per_cell")["cells"][:3], "...")
print("bulk map:", os.path.relpath(full.linked_cool_path("bulk")), cooler.fileops.list_coolers(full.linked_cool_path("bulk")))

clr = full.load_linked_scool(key="per_cell", cell="Cell_1")
cell1 = full.get_cell("Cell_1", columns="coords")
ratio = {}
for chrom in ("chr1", "chr2", "chr5", "chr11", "chr19"):
    sub = cell1.get_chrom(chrom)
    mb = sub.spots["start"].to_numpy() // 1_000_000                 # 100 kb particles -> 1 Mb bins
    contacts = clr.matrix(balance=False).fetch(chrom)
    pos = np.full((len(contacts), 3), np.nan)
    means = pd.DataFrame(sub.coords).groupby(mb).mean()
    pos[means.index] = means.to_numpy()
    dist = np.linalg.norm(pos[:, None] - pos[None], axis=-1)
    i, j = np.triu_indices(len(contacts), k=2)
    keep = np.isfinite(dist[i, j]) & (j - i <= 20)                   # pairs 2-20 Mb apart
    hit = contacts[i, j] > 0
    ratio[chrom] = float(np.median(dist[i, j][keep & hit]) / np.median(dist[i, j][keep & ~hit]))
print("median 3-D distance, contacted / not contacted (2-20 Mb apart):", {k: round(v, 2) for k, v in ratio.items()})

['/cells/Cell_1', '/cells/Cell_2', '/cells/Cell_3'] ...
bulk map: _out/chromdata_stores/stevens2017_mesc/stevens2017_mesc_bulk.mcool ['/resolutions/100000', '/resolutions/500000', '/resolutions/1000000']
median 3-D distance, contacted / not contacted (2-20 Mb apart): {'chr1': 0.43, 'chr2': 0.44, 'chr5': 0.46, 'chr11': 0.41, 'chr19': 0.52}

A copy written somewhere else keeps the link records verbatim, so relative links break — validate_links() says so. Re-link with paths relative to the new location (absolute paths work too):

copy_path = OUT / "stevens2017.chromdata.zarr"
full.write(copy_path)
copy = ChromData.read(copy_path)
print("after copying:", copy.validate_links())

relto = lambda p: os.path.relpath(Path(p).resolve(), copy_path.parent.resolve())
copy.link_cool(relto(STEVENS / "stevens2017_mesc_bulk.mcool"), key="bulk", label="All 8 cells (merged)")
copy.link_scool(relto(STEVENS / "stevens2017_mesc_cells_1Mb.scool"), key="per_cell", label="Per cell",
                cell_name="cell_id", genome_assembly="mm10", bin_size=1_000_000)
copy.write(copy_path)
copy = ChromData.read(copy_path, backed=True)
print("re-linked:", copy.uns["linked_scool"]["per_cell"]["path"], "| validate_links():", copy.validate_links())

after copying: ['linked_scool.per_cell path does not exist: stevens2017_mesc_cells_1Mb.scool', 'linked_cool.bulk path does not exist: stevens2017_mesc_bulk.mcool']

re-linked: stevens2017_mesc/stevens2017_mesc_cells_1Mb.scool | validate_links(): []

AnnData: copy the cell table, or link the file

For cell-by-feature matrices there are two routes. link_anndata(adata) copies obs / obsm into cells / cellm (matched by cell_id); a record uns["linked_anndata"] instead points at the .h5ad, which is opened lazily as cd.linked_adata. The Takei 2021 mRNA counts (45 genes, cell table) as an AnnData:

import anndata as ad

genes = [c for c in cd.cells.columns if c.startswith("rna.")]
X = cd.cells[genes].to_numpy(float)
logx = np.log1p(X / X.sum(1, keepdims=True) * 1e4)
u, s, _ = np.linalg.svd(logx - logx.mean(0), full_matrices=False)
adata = ad.AnnData(X=X, obs=cd.cells[["nucleus_area_um2", "keep1"]].copy(),
                   var=pd.DataFrame(index=[g.removeprefix("rna.") for g in genes]), obsm={"X_pca": u[:, :10] * s[:10]})
adata.write_h5ad(OUT / "takei2021_rna.h5ad")

core = ChromData.from_fofct(CORE)                    # spots only, no cell table
print("matched cells:", core.link_anndata(adata), "| cells:", list(core.cells.columns), "| cellm:", list(core.cellm))
core.uns["linked_anndata"] = {"path": "takei2021_rna.h5ad", "format": "h5ad"}
core.write(OUT / "takei2021_rna.chromdata.zarr")
rna_store = ChromData.read(OUT / "takei2021_rna.chromdata.zarr", backed=True)
print("validate_links():", rna_store.validate_links(), "| linked_adata:", rna_store.linked_adata.shape)

matched cells: 201 | cells: ['nucleus_area_um2', 'keep1'] | cellm: ['X_pca']

validate_links(): [] | linked_adata: (201, 45)

Embedded copies: chromdata.embedded

A store on object storage cannot follow links to files on someone’s disk. embed_links(store) (or python -m chromdata.embedded STORE) copies every linked .cool / .mcool / .scool / .h5ad into the store (embedded/contacts/<key>/, embedded/anndata/<key>/): pixels as Zarr arrays partitioned by chromosome and sharded for range reads. The link records stay; readers use the embedded copy when the file is not there.

from chromdata.embedded import EmbeddedContacts, embed_links

before = size(copy_path)
t0 = time.perf_counter()
done = embed_links(copy_path)
done_rna = embed_links(OUT / "takei2021_rna.chromdata.zarr")
print(f"embedded {list(done)} + {list(done_rna)} in {time.perf_counter() - t0:.1f} s; "
      f"store {before / 1e6:.1f} -> {size(copy_path) / 1e6:.1f} MB "
      f"(linked files: {(size(STEVENS / 'stevens2017_mesc_bulk.mcool') + size(STEVENS / 'stevens2017_mesc_cells_1Mb.scool')) / 1e6:.1f} MB)")
emb = ChromData.read(copy_path, backed=True)
print(emb.embedded_links())

[embed] linked_cool/bulk: stevens2017_mesc_bulk.mcool

[embed] linked_scool/per_cell: stevens2017_mesc_cells_1Mb.scool

[embed] linked_anndata/default: takei2021_rna.h5ad

embedded ['bulk', 'per_cell'] + ['default'] in 1.9 s; store 23.1 -> 25.2 MB (linked files: 1.6 MB)
{'contacts': {'bulk': 'bulk', 'per_cell': 'per_cell'}, 'anndata': {}, 'images': {}}

EmbeddedContacts reads an embedded map directly — one cell’s pixels of one chromosome are one contiguous slice. They are exactly the pixels of the .scool:

per_cell = EmbeddedContacts(str(copy_path), emb.embedded_links()["contacts"]["per_cell"])
print(per_cell.kind, per_cell.resolutions, len(per_cell.cells), "cells,", len(per_cell.chroms), "chromosomes")
pix = per_cell.cell_pixels("cis/chr1", [per_cell.cells.index("Cell_1")])          # (bin1, bin2, count), chromosome-local
ref = clr.matrix(balance=False, as_pixels=True).fetch("chr1")
print(f"Cell_1 chr1: {len(pix)} pixels, {pix[:, 2].sum()} contacts; identical to the scool:",
      np.array_equal(pix[:, 2], ref["count"].to_numpy()) and np.array_equal(pix[:, 0] + per_cell.first_bin("chr1"), ref["bin1_id"].to_numpy()))

per_cell [1000000] 8 cells, 20 chromosomes
Cell_1 chr1: 995 pixels, 7579 contacts; identical to the scool: True

Now ship the store alone — moved to a folder without the linked files. The links no longer resolve, but nothing is missing: validate_links() is clean, load_linked_scool(cell=) / linked_cool_path() export cooler files from the embedded pixels on demand, and linked_adata reads the embedded AnnData.

shipped = OUT / "shipped"; shipped.mkdir()
shutil.copytree(copy_path, shipped / copy_path.name)
shutil.copytree(OUT / "takei2021_rna.chromdata.zarr", shipped / "takei2021_rna.chromdata.zarr")
alone = ChromData.read(shipped / copy_path.name, backed=True)
rec = alone.uns["linked_cool"]["bulk"]["path"]
print("link resolves:", alone.resolve_link_path(rec).exists(), "| validate_links():", alone.validate_links())

one, t = timed(alone.load_linked_scool, key="per_cell", cell="Cell_1", repeat=1)
print(f"Cell_1 exported from the embedded copy in {t:.2f} s:", np.array_equal(one.matrix(balance=False).fetch("chr1"),
                                                                              clr.matrix(balance=False).fetch("chr1")))
mcool = alone.linked_cool_path("bulk")
orig = cooler.Cooler(f"{full.linked_cool_path('bulk')}::/resolutions/1000000")
again = cooler.Cooler(f"{mcool}::/resolutions/1000000")
print("bulk mcool exported:", cooler.fileops.list_coolers(mcool), "| chr2 balanced matrix identical:",
      np.allclose(orig.matrix().fetch("chr2"), again.matrix().fetch("chr2"), equal_nan=True))
rna_alone = ChromData.read(shipped / "takei2021_rna.chromdata.zarr", backed=True)
print("AnnData from the embedded copy:", rna_alone.linked_adata.shape, np.array_equal(rna_alone.linked_adata.X, adata.X))

link resolves: False | validate_links(): []
Cell_1 exported from the embedded copy in 0.15 s: True

bulk mcool exported: ['/resolutions/100000', '/resolutions/500000', '/resolutions/1000000'] | chr2 balanced matrix identical: True
AnnData from the embedded copy: (201, 45) True

The public atlas over HTTP

The U-Chrom atlas is a bucket of embedded stores plus a catalog.json. chromdata.catalog.fetch_catalog reads the catalog; ChromData.read(url, backed=True) opens any store over HTTP (fsspec; s3:// and gs:// work too) — metadata and small tables at open, range requests afterwards. Remote stores are always read backed.

from chromdata.catalog import DEFAULT_ATLAS, fetch_catalog

catalog = fetch_catalog(DEFAULT_ATLAS)
print(DEFAULT_ATLAS, "| updated", catalog["updated"], "|", len(catalog["datasets"]), "datasets")
atlas = pd.DataFrame(catalog["datasets"]).set_index("id")
atlas["modalities"] = atlas["modalities"].str.join(", ")
atlas[["n_cells", "n_spots", "size_mb", "modalities"]].sort_values("size_mb", ascending=False).head(8)

https://uchrom-atlas-r2.u-science.org | updated 2026-10-06T00:22:29Z | 22 datasets

	n_cells	n_spots	size_mb	modalities
id
hicrna_mouse_embryo	64861	0	4577.6	Hi-C per spot, Hi-C bulk, RNA, images, embeddings
hires_embryo	7469	182344800	3174.2	Hi-C per cell, Hi-C bulk, RNA, 3-D coordinates...
hicrna_human_melanoma	12649	0	2727.7	Hi-C per spot, Hi-C bulk, RNA, images, embeddings
dschic_aging_cortex	32777	0	2277.9	Hi-C per cell, Hi-C bulk, embeddings
hicrna_mouse_brain	12474	0	2254.0	Hi-C per spot, Hi-C bulk, RNA, A/B per spot, i...
takei2025_cerebellum	1799	10912638	2050.7	signals per spot, 3-D coordinates, embeddings
chen2026_brain_embryo_10um	40468	0	1887.2	Hi-C per spot, Hi-C bulk, RNA, A/B per spot, i...
chen2026_brain_embryo_20um	28769	0	1446.1	Hi-C per spot, Hi-C bulk, RNA, A/B per spot, i...

The largest store with coordinates: HiRES mouse embryo, 7,469 cells, 182 million spots (3.2 GB). Opening it reads the small tables; one cell’s structure is a few row groups:

import fsspec.implementations.http  # noqa: F401  (import the HTTP filesystem first, so it is not timed)

hires_url = catalog["datasets"][[d["id"] for d in catalog["datasets"]].index("hires_embryo")]["url"]
t0 = time.perf_counter(); hires = ChromData.read(hires_url, backed=True); t_open = time.perf_counter() - t0
print(f"open {hires_url.rsplit('/', 1)[1]}: {t_open:.1f} s; {hires.n_spots:,} spots, {hires.n_cells:,} cells, "
      f"{atlas.loc['hires_embryo', 'size_mb'] / 1e3:.1f} GB")
cid = hires.cells.index[0]
t0 = time.perf_counter(); cell = hires.get_cell(cid, columns="coords"); t_cell = time.perf_counter() - t0
print(f"get_cell({cid!r}, columns='coords'): {t_cell:.1f} s, {cell.n_spots:,} particles in {cell.n_traces} traces "
      f"({hires.cells.loc[cid, 'stage']}, {hires.cells.loc[cid, 'cell_type']}; unit: {hires.uns.get('xyz_unit')})")
try:
    ChromData.read(hires_url)
except ValueError as err:
    print("ValueError:", err)

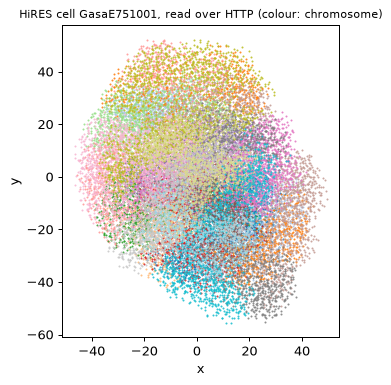

chrom = cell.spots["chrom"].astype(str).to_numpy()
fig, ax = plt.subplots(figsize=(4.5, 4.5))
for k, c in enumerate(cell.chroms):
    m = chrom == c
    ax.scatter(cell.coords[m, 0], cell.coords[m, 1], s=0.3, color=plt.cm.tab20(k % 20), rasterized=True)
ax.set_aspect("equal"); ax.set_xlabel("x"); ax.set_ylabel("y")
ax.set_title(f"HiRES cell {cid}, read over HTTP (colour: chromosome)", fontsize=9)
plt.show()

open hires_embryo.chromdata.zarr: 1.8 s; 182,344,800 spots, 7,469 cells, 3.2 GB

get_cell('GasaE751001', columns='coords'): 1.2 s, 24,798 particles in 39 traces (E7.5, ExE ectoderm; unit: particle radius)
ValueError: a remote store is read backed: pass backed=True

ds.atlas(id) is ChromData.read(<catalog url>, backed=True). The Stevens 2017 store copied at the start, read over HTTP: one cell equals the local read, and the store carries its maps embedded:

remote = ChromData.read(f"{DEFAULT_ATLAS}/stevens2017_mesc.chromdata.zarr", backed=True)   # = ds.atlas("stevens2017_mesc")
t0 = time.perf_counter(); r1 = remote.get_cell("Cell_1", columns="coords"); t = time.perf_counter() - t0
print(f"remote get_cell: {t:.1f} s; identical to the local store:",
      np.array_equal(r1.coords, cell1.coords) and r1.spots.equals(cell1.spots), "| embedded:", remote.embedded_links()["contacts"])

remote get_cell: 0.6 s; identical to the local store: True | embedded: {'bulk': 'bulk', 'per_cell': 'per_cell'}

tracks= works the same over HTTP: one Takei 2025 cerebellum cell with one of its 62 per-spot immunofluorescence / RNA channels (out of a 2 GB store):

cereb = ChromData.read(f"{DEFAULT_ATLAS}/takei2025_cerebellum.chromdata.zarr", backed=True)
pk = cereb.cells.index[cereb.cells["cell_type"] == "Purkinje"][0]
t0 = time.perf_counter(); c = cereb.get_cell(pk, columns="coords", tracks=["H3K27ac"]); t = time.perf_counter() - t0
print(f"{len(cereb.track_names()['spot'])} spot tracks in the store; Purkinje cell {pk}: {c.n_spots:,} spots, "
      f"tracks {list(c.spot_tracks.columns)}, read in {t:.1f} s; H3K27ac median {c.spot_tracks['H3K27ac'].median():.2f}")

62 spot tracks in the store; Purkinje cell 1_0_26: 4,225 spots, tracks ['H3K27ac'], read in 0.9 s; H3K27ac median 0.46

Embedded contact maps read the same way: one scHiCAR cortex cell’s chr1 contacts, and a region of the merged map of all 5,313 cells.

from chromdata.embedded import open_all

schicar_url = f"{DEFAULT_ATLAS}/schicar_mouse_cortex.chromdata.zarr"
t0 = time.perf_counter(); maps = open_all(schicar_url); t_maps = time.perf_counter() - t0
pc, bulk = maps["per_cell"], maps["all_cells"]
print(f"open_all: {t_maps:.1f} s -> {len(maps)} maps; per_cell: {len(pc.cells):,} cells at {pc.resolutions} bp; "
      f"all_cells: {bulk.resolutions}")
t0 = time.perf_counter(); px = pc.cell_pixels("cis/chr1", [0]); t1 = time.perf_counter() - t0
t0 = time.perf_counter(); region = bulk.region_pixels("chr1", 0, 50, resolution=1_000_000); t2 = time.perf_counter() - t0
print(f"cell {pc.cells[0]} chr1: {px[:, 2].sum():,} contacts ({t1:.1f} s); "
      f"all cells, chr1 0-50 Mb at 1 Mb: {region[:, 2].sum():,} contacts ({t2:.1f} s)")

open_all: 0.3 s -> 24 maps; per_cell: 5,313 cells at [1000000] bp; all_cells: [250000, 500000, 1000000, 2000000]

cell ACGAACAAACTCAGACTT chr1: 3,724 contacts (0.4 s); all cells, chr1 0-50 Mb at 1 Mb: 1,881,607 contacts (0.4 s)

Next steps

• chromdata_basics — the data model (bins, tracks, cells, intervals, results, cell positions).

• import_fofct — FOF-CT import / export.

• tad_calling, loop_calling — the ArcFISH callers, which stream over a backed store (streaming=True, the default on backed data) within chromdata.settings.memory_budget.

• The web browser (uchrom_browser) opens local stores and the atlas backed, the same way.
